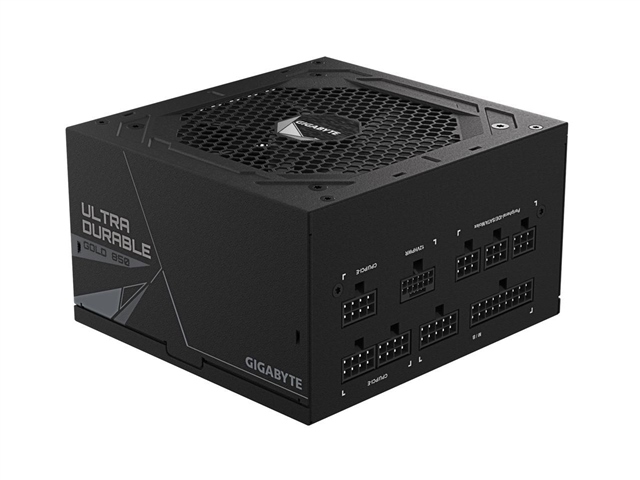

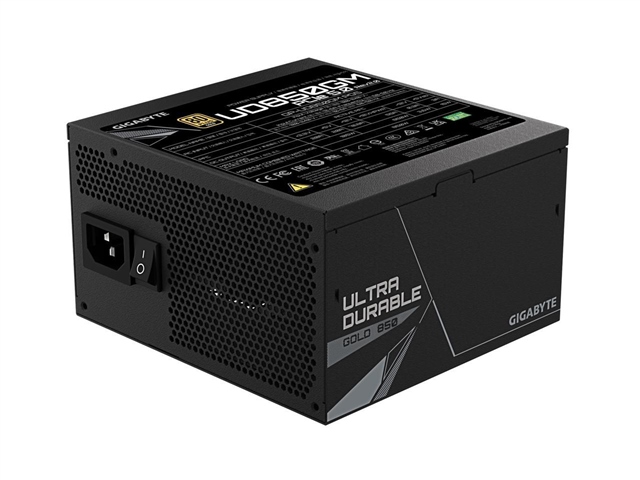

GIGABYTE GP-UD850GM PG5 Rev2.0
Specification
General
Brand GIGABYTE
Model GP-UD850GM PG5 REV2.0
Details
Type ATX12V
Maximum Power  850W

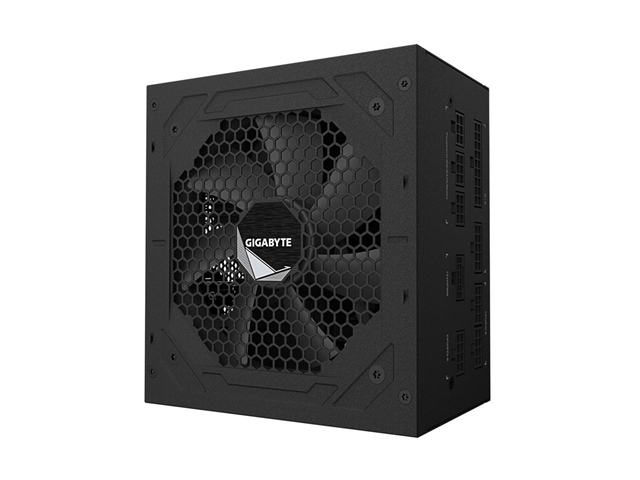

Fans  120mm Hydraulic Bearing (HYB)Fan
Main Connector  20+4Pin
+12V Rails  Single
PCI-Express Connector  4 x 6+2-Pin
SATA Power Connector  8
Max PSU Length 150 mm
Efficiency  90% at typical load
Energy-Efficient 80 PLUS GOLD Certified
Protection OVP/OPP/SCP/UVP/OCP/OTP
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 12A-6A
MTBF  >100,000 Hours
Approvals BSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL/PSE

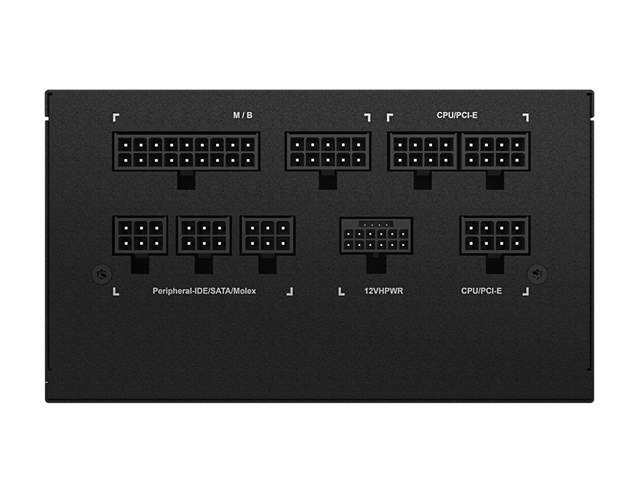

Connectors ATX/MB 20+4 Pin x 1
EPS/ATX 12V 4+4pin x 2
PCI-e 6+2 pin x 4
PCI-e 16 pin x 1
SATA 5 pin x 8
Peripheral 4-pin x 3
Floppy 4-pin x 1
Cable Spec Black Flat Cables
Dimension & Weight
Dimensions 140 x 150 x 86mm
Details
PFC Active
